"The Big Problem", and "Visual Compilers: A Practical Example"

Sun Jun 29, 2014

Programmers work on many different things, and approach them from many different directions. But I believe that, fundamentally, the primary endeavor of ever programmer is twofold:

To understand, and to be understood.

This is the big problem we all struggle with. I remember reading somewhere that one of those was supposed to be more important than the other, but consider the notion bullshit. You seem to need both, in about even measure, to do anything worthwhile. The "To understand" part is a big problem in its own right, and seems to boil down to "never stop learning". Seriously, if you ever think you're Done learning, slap yourself across the face because I guarantee you're wrong. But that's one side of the equation.

The other side, "To be understood" seems harder. Whether the target audience is your fellow programmers, or management/business types that you need to keep in the loop, or a future instance of yourself after some months away from the codebase. There's a bunch of different approaches out there, none of them are perfectly general, and they're all only scratching the surface. Haskellers and MLers swear by types, hoping that additional, compiler-checked meta-information about a particular function is useful to the reader. Eiffel and other contract/dependent type systems go a bit further in the same direction. Rather a lot of people just try to keep ad-hoc documentation in along with their code, or perhaps in external articles, and call it a day. If you've been following my recent exploits at all, you'll know that I'm experimenting with literate programming concepts. Interweaving prose explanations, examples and executable code to try to get a form of documentation that

It's hard. Even having written my own editor for this purpose, it's not clear that I can ever do a complete job. I'll keep experimenting with it; it might work eventually.

There is another approach though. It doesn't necessarily solve all the problems, and I've already mentioned that I'm not anything like a true believer yet. But it shows surprising promise; enough that my co-conspirators and I have been doing actual, professional development with it.

The approach is Visual Compilation. I like to call it "program injection" in contrast to "doc extraction", because the way it fundamentally works is by accepting a top-level flow diagram from you and using it to generate code. Like I said, it works surprisingly well. We've successfully used it to generate documentation that doesn't go stale, guaranteed|1|, and that's extremely useful in explaining the contents of the systems we're building, even to non-programmers. We use a particular approach called Flow Based Programming which lets us generate a particular set of control-flow primitives from a hierarchical diagram and fall through to three or four lines of code in some leaf components.

Constraint Propagation

That's not intrinsically necessary though, depending on the underlying system you want to support. Consider the constraint propagation system from chapter 3 of SICP. There's a very small set of primitives that describe constraints, probes and the connectors that span them. Any more complicated construct that you need, you build by composing the above|2|. This lends itself to simple visual compilation with no "leaf components" in the way that I meant above. The main point is that you can run these constraints in multiple directions. Unlike our FBP components, which have definite inputs and outputs, constraints have multiple connectors, any of which might serve as input or output. If that sounds interesting, I encourage you to read that SICP chapter I pointed you to. All I'm going to be doing is showing how you might go about generating code from the constraint diagrams they draw, rather than generating code by hand and separately producing documenting diagrams.

Here's a simple example directly from the book:

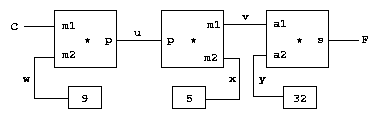

The celsius<->faranheit converter image from SICP

It's a Celsius to Faranheit temperature converter. The idea is that you can either chuck a Celsius temperature at it and get out the Faranheit, or you can give it a Faranheit to take to Celsius. Here's the in-book code they show you that does the job:

(define C (make-connector))
(define F (make-connector))

(define (celsius-fahrenheit-converter c f)
  (let ((u (make-connector))
        (v (make-connector))
        (w (make-connector))
        (x (make-connector))
        (y (make-connector)))
    (multiplier c w u)
    (multiplier v x u)
    (adder v y f)
    (constant 9 w)
    (constant 5 x)
    (constant 32 y)
    'ok))

(probe "Celsius temp" C)
(probe "Fahrenheit temp" F)
(celsius-fahrenheit-converter C F)

Textual Representation

I'm working in Common Lisp rather than Scheme, so I've had to make some changes to the underlying system. You can check out my implementation here. The corresponding code targeting that implementation is:

(defvar *c* (make-connector))
(defvar *f* (make-connector))

(defun celsius-faranheit (c f)
  (let ((u (make-connector))
        (v (make-connector))
        (w (make-connector))
        (x (make-connector))
        (y (make-connector)))
    (make-multiplier :m1 c :m2 w :product u)
    (make-multiplier :m1 v :m2 x :product u)
    (make-adder :a1 v :a2 y :sum f)
    (make-constant 9 w)
    (make-constant 5 x)
    (make-constant 32 y)
    'ok))

(make-probe "Celsius temp" *c*)
(make-probe "Faranheit temp" *f*)
(celsius-faranheit *c* *f*)

The only conceptual change I had to make that isn't related to the language shift is that all the constraint arguments are keyword args. This is in service of having an easier time ordering inputs later|3|. So the goal is to take something like that picture above, and emit something like that code in a reasonably simple, and completely automated manner. The hope is that the result will be more easily understood by readers, and certain to avoid getting stale. Step by step then, we need a drawing.

Graphical Representation

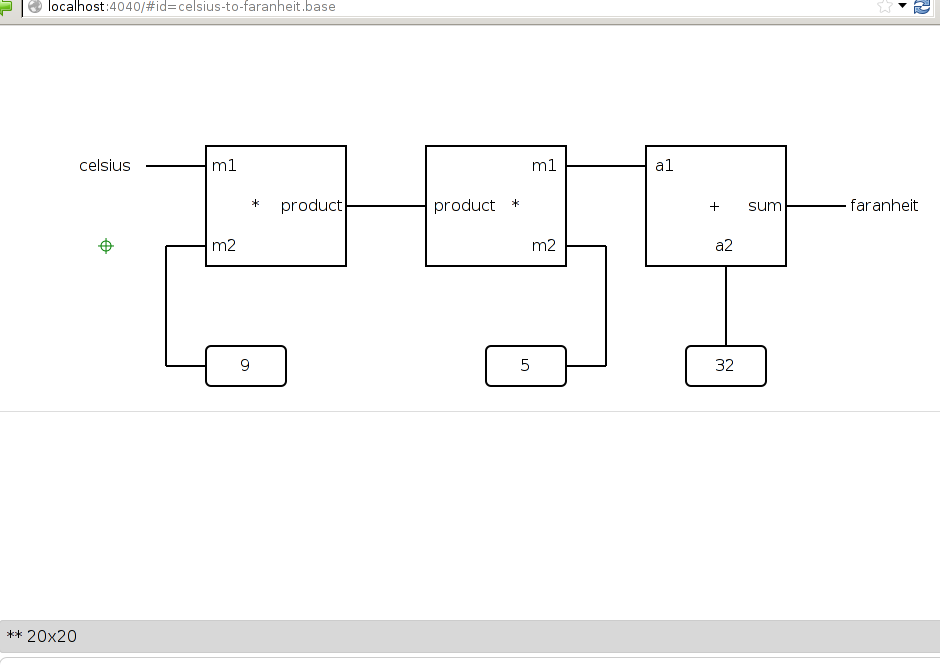

Here's one created with 2dmacs, the visual editor we use in Moneris' Web POS Development team. It's not yet open source, though we do have plans in that direction, so I can only show you its output rather than its innards.

A visual program that converts Celsius to Faranheit

I've adopted some formalisms from the SICP diagram, and made up a couple:

2dmacs internally represents diagrams as triple-stores. Here's the triple-store that represents the above diagram:

((:FACT45 :CONTENTS "sum
")
 (:FACT57 :START (240 160))
 (:FACT57 :END (300 200))
 (:FACT58 :END (560 200))
 (:FACT58 :START (500 160))
 (:FACT50 :END (520 200))
 (:FACT51 :START (260 160))
 (:FACT51 :V-ALIGN :MIDDLE)
 (:FACT51 :H-ALIGN :RIGHT)
 (:FACT51 :CONTENTS "product
")
 (:FACT50 :CONTENTS "product
")
 (:FACT47 :END (940 200))
 (:FACT47 :START (860 160))
 (:FACT47 :CONTENTS "faranheit
")
 (:FACT55 :START (80 120))
 (:FACT55 :CONTENTS "celsius
")
 (:FACT84 :FOLLOW (:FACT75 :END))
 (:FACT84 :LEAD (:FACT76 :START))
 (:FACT84 :CONSTRAIN :X)
 (:FACT84 :CONSTRAINT NIL)
 (:FACT0 :VALUE 85)
 (:FACT83 :FOLLOW (:FACT76 :START))
 (:FACT83 :LEAD (:FACT75 :END))
 (:FACT83 :CONSTRAIN :X)
 (:FACT83 :CONSTRAINT NIL)
 (:FACT82 :FOLLOW (:FACT75 :END))
 (:FACT82 :LEAD (:FACT76 :START))
 (:FACT82 :CONSTRAIN :Y)
 (:FACT82 :CONSTRAINT NIL)
 (:FACT81 :FOLLOW (:FACT76 :START))
 (:FACT81 :LEAD (:FACT75 :END))
 (:FACT81 :CONSTRAIN :Y)
 (:FACT81 :CONSTRAINT NIL)
 (:FACT80 :FOLLOW (:FACT74 :END))
 (:FACT80 :LEAD (:FACT75 :START))
 (:FACT80 :CONSTRAIN :X)
 (:FACT80 :CONSTRAINT NIL)
 (:FACT79 :FOLLOW (:FACT75 :START))
 (:FACT79 :LEAD (:FACT74 :END))
 (:FACT79 :CONSTRAIN :X)
 (:FACT79 :CONSTRAINT NIL)
 (:FACT78 :FOLLOW (:FACT74 :END))
 (:FACT78 :LEAD (:FACT75 :START))
 (:FACT78 :CONSTRAIN :Y)
 (:FACT78 :CONSTRAINT NIL)
 (:FACT77 :FOLLOW (:FACT75 :START))
 (:FACT77 :LEAD (:FACT74 :END))
 (:FACT77 :CONSTRAIN :Y)
 (:FACT77 :CONSTRAINT NIL)
 (:FACT76 :END (580 220))
 (:FACT76 :START (620 220))
 (:FACT76 :LINE-SEGMENT NIL)
 (:FACT75 :END (620 220))
 (:FACT75 :START (620 340))
 (:FACT75 :LINE-SEGMENT NIL)
 (:FACT74 :END (620 340))
 (:FACT74 :START (580 340))
 (:FACT74 :LINE-SEGMENT NIL)
 (:FACT73 :FOLLOW (:FACT64 :END))
 (:FACT73 :LEAD (:FACT65 :START))
 (:FACT73 :CONSTRAIN :X)
 (:FACT73 :CONSTRAINT NIL)
 (:FACT72 :FOLLOW (:FACT65 :START))
 (:FACT72 :LEAD (:FACT64 :END))
 (:FACT72 :CONSTRAIN :X)
 (:FACT72 :CONSTRAINT NIL)
 (:FACT71 :FOLLOW (:FACT64 :END))
 (:FACT71 :LEAD (:FACT65 :START))
 (:FACT71 :CONSTRAIN :Y)
 (:FACT71 :CONSTRAINT NIL)
 (:FACT70 :FOLLOW (:FACT65 :START))
 (:FACT70 :LEAD (:FACT64 :END))
 (:FACT70 :CONSTRAIN :Y)
 (:FACT70 :CONSTRAINT NIL)
 (:FACT69 :FOLLOW (:FACT63 :END))
 (:FACT69 :LEAD (:FACT64 :START))
 (:FACT69 :CONSTRAIN :X)
 (:FACT69 :CONSTRAINT NIL)
 (:FACT68 :FOLLOW (:FACT64 :START))
 (:FACT68 :LEAD (:FACT63 :END))
 (:FACT68 :CONSTRAIN :X)
 (:FACT68 :CONSTRAINT NIL)
 (:FACT67 :FOLLOW (:FACT63 :END))
 (:FACT67 :LEAD (:FACT64 :START))
 (:FACT67 :CONSTRAIN :Y)
 (:FACT67 :CONSTRAINT NIL)
 (:FACT66 :FOLLOW (:FACT64 :START))
 (:FACT66 :LEAD (:FACT63 :END))
 (:FACT66 :CONSTRAIN :Y)
 (:FACT66 :CONSTRAINT NIL)
 (:FACT65 :END (220 220))
 (:FACT65 :START (180 220))
 (:FACT65 :LINE-SEGMENT NIL)
 (:FACT64 :END (180 220))
 (:FACT64 :START (180 340))
 (:FACT64 :LINE-SEGMENT NIL)
 (:FACT63 :END (180 340))
 (:FACT63 :START (220 340))
 (:FACT63 :LINE-SEGMENT NIL)
 (:FACT15 :END (300 360))
 (:FACT15 :START (220 320))
 (:FACT14 :END (300 360))
 (:FACT14 :START (220 320))
 (:FACT13 :END (300 360))
 (:FACT13 :START (220 320))
 (:FACT60 :VALUE "celsius-to-faranheit")
 (:FACT60 :DIAGRAM-NAME NIL)
 (:FACT59 :CONTENTS "+
")
 (:FACT59 :TEXT NIL)
 (:FACT59 :WEIGHT :NORMAL)
 (:FACT59 :SIZE 16)
 (:FACT59 :H-ALIGN :MIDDLE)
 (:FACT59 :V-ALIGN :MIDDLE)
 (:FACT59 :START (700 160))
 (:FACT59 :END (760 200))
 (:FACT58 :TEXT NIL)
 (:FACT58 :WEIGHT :NORMAL)
 (:FACT58 :SIZE 16)
 (:FACT58 :H-ALIGN :MIDDLE)
 (:FACT58 :V-ALIGN :MIDDLE)
 (:FACT58 :CONTENTS "*
")
 (:FACT57 :CONTENTS "*
")
 (:FACT57 :V-ALIGN :MIDDLE)
 (:FACT57 :H-ALIGN :MIDDLE)
 (:FACT57 :SIZE 16)
 (:FACT57 :WEIGHT :NORMAL)
 (:FACT57 :TEXT NIL)
 (:FACT55 :END (160 160))
 (:FACT56 :END (220 140))
 (:FACT56 :START (160 140))
 (:FACT56 :LINE-SEGMENT NIL)
 (:FACT55 :TEXT NIL)
 (:FACT55 :WEIGHT :NORMAL)
 (:FACT55 :SIZE 16)
 (:FACT55 :H-ALIGN :MIDDLE)
 (:FACT55 :V-ALIGN :MIDDLE)
 (:FACT53 :END (260 240))
 (:FACT53 :START (220 200))
 (:FACT54 :END (260 160))
 (:FACT54 :START (220 120))
 (:FACT51 :END (360 200))
 (:FACT50 :START (440 160))
 (:FACT49 :END (580 240))
 (:FACT49 :START (540 200))
 (:FACT48 :START (540 120))
 (:FACT48 :END (580 160))
 (:FACT46 :START (800 180))
 (:FACT46 :END (860 180))
 (:FACT45 :START (760 160))
 (:FACT45 :END (800 200))
 (:FACT44 :START (660 120))
 (:FACT44 :END (700 160))
 (:FACT41 :START (720 200))
 (:FACT41 :END (760 240))
 (:FACT42 :START (740 240))
 (:FACT42 :END (740 320))
 (:FACT12 :START (700 320))
 (:FACT12 :END (780 360))
 (:FACT11 :START (700 320))
 (:FACT11 :END (780 360))
 (:FACT10 :START (700 320))
 (:FACT10 :END (780 360))
 (:FACT7 :START (500 320))
 (:FACT7 :END (580 360))
 (:FACT8 :START (500 320))
 (:FACT8 :END (580 360))
 (:FACT9 :START (500 320))
 (:FACT9 :END (580 360))
 (:FACT6 :START (580 140))
 (:FACT6 :END (660 140))
 (:FACT5 :START (360 180))
 (:FACT5 :END (440 180))
 (:FACT4 :END (800 240))
 (:FACT4 :START (660 120))
 (:FACT3 :END (580 240))
 (:FACT3 :START (440 120))
 (:FACT2 :START (220 120))
 (:FACT2 :END (360 240))
 (:FACT53 :CONTENTS "m2
")
 (:FACT54 :TEXT NIL)
 (:FACT54 :WEIGHT :NORMAL)
 (:FACT54 :SIZE 16)
 (:FACT54 :H-ALIGN :MIDDLE)
 (:FACT54 :V-ALIGN :MIDDLE)
 (:FACT54 :CONTENTS "m1
")
 (:FACT53 :TEXT NIL)
 (:FACT53 :WEIGHT :NORMAL)
 (:FACT53 :SIZE 16)
 (:FACT53 :H-ALIGN :MIDDLE)
 (:FACT53 :V-ALIGN :MIDDLE)
 (:FACT51 :SIZE 16)
 (:FACT51 :WEIGHT :NORMAL)
 (:FACT51 :TEXT NIL)
 (:FACT50 :TEXT NIL)
 (:FACT50 :WEIGHT :NORMAL)
 (:FACT50 :SIZE 16)
 (:FACT50 :H-ALIGN :MIDDLE)
 (:FACT50 :V-ALIGN :MIDDLE)
 (:FACT49 :CONTENTS "m2
")
 (:FACT49 :TEXT NIL)
 (:FACT49 :WEIGHT :NORMAL)
 (:FACT49 :SIZE 16)
 (:FACT49 :H-ALIGN :MIDDLE)
 (:FACT49 :V-ALIGN :MIDDLE)
 (:FACT48 :CONTENTS "m1
")
 (:FACT48 :V-ALIGN :MIDDLE)
 (:FACT48 :H-ALIGN :MIDDLE)
 (:FACT48 :SIZE 16)
 (:FACT48 :WEIGHT :NORMAL)
 (:FACT48 :TEXT NIL)
 (:FACT47 :V-ALIGN :MIDDLE)
 (:FACT47 :H-ALIGN :MIDDLE)
 (:FACT47 :SIZE 16)
 (:FACT47 :WEIGHT :NORMAL)
 (:FACT47 :TEXT NIL)
 (:FACT46 :LINE-SEGMENT NIL)
 (:FACT45 :TEXT NIL)
 (:FACT45 :WEIGHT :NORMAL)
 (:FACT45 :SIZE 16)
 (:FACT45 :H-ALIGN :MIDDLE)
 (:FACT45 :V-ALIGN :MIDDLE)
 (:FACT44 :CONTENTS "a1
")
 (:FACT44 :TEXT NIL)
 (:FACT44 :WEIGHT :NORMAL)
 (:FACT44 :SIZE 16)
 (:FACT44 :H-ALIGN :MIDDLE)
 (:FACT44 :V-ALIGN :MIDDLE)
 (:FACT41 :CONTENTS "a2
")
 (:FACT42 :LINE-SEGMENT NIL)
 (:FACT41 :V-ALIGN :MIDDLE)
 (:FACT41 :H-ALIGN :MIDDLE)
 (:FACT41 :SIZE 16)
 (:FACT41 :WEIGHT :NORMAL)
 (:FACT41 :TEXT NIL)
 (:FACT15 :CONTENTS "9
")
 (:FACT14 :ROUNDED-RECTANGLE NIL)
 (:FACT14 :CORNER-RADIUS 5)
 (:FACT15 :TEXT NIL)
 (:FACT15 :WEIGHT :NORMAL)
 (:FACT15 :SIZE 16)
 (:FACT15 :H-ALIGN :MIDDLE)
 (:FACT15 :V-ALIGN :MIDDLE)
 (:FACT13 :GROUP NIL)
 (:FACT13 :AREA 3200)
 (:FACT13 :GROUPED :FACT15)
 (:FACT13 :GROUPED :FACT14)
 (:FACT12 :CONTENTS "32
")
 (:FACT11 :ROUNDED-RECTANGLE NIL)
 (:FACT11 :CORNER-RADIUS 5)
 (:FACT12 :TEXT NIL)
 (:FACT12 :WEIGHT :NORMAL)
 (:FACT12 :SIZE 16)
 (:FACT12 :H-ALIGN :MIDDLE)
 (:FACT12 :V-ALIGN :MIDDLE)
 (:FACT10 :GROUP NIL)
 (:FACT10 :AREA 3200)
 (:FACT10 :GROUPED :FACT12)
 (:FACT10 :GROUPED :FACT11)
 (:FACT9 :GROUPED :FACT7)
 (:FACT9 :GROUPED :FACT8)
 (:FACT9 :AREA 3200)
 (:FACT9 :GROUP NIL)
 (:FACT8 :V-ALIGN :MIDDLE)
 (:FACT8 :H-ALIGN :MIDDLE)
 (:FACT8 :SIZE 16)
 (:FACT8 :WEIGHT :NORMAL)
 (:FACT8 :CONTENTS "5
")
 (:FACT8 :TEXT NIL)
 (:FACT7 :CORNER-RADIUS 5)
 (:FACT7 :ROUNDED-RECTANGLE NIL)
 (:FACT6 :LINE-SEGMENT NIL)
 (:FACT5 :LINE-SEGMENT NIL)
 (:FACT4 :RECTANGLE NIL)
 (:FACT3 :RECTANGLE NIL)
 (:FACT2 :RECTANGLE NIL)
 (:FACT0 :NEXT-ID NIL))

It represents, at a fairly low level, what the diagram contains. The approach should remind you of logic programming data stores, because it's heavily inspired by them. The idea is that any given primitive that we draw is represented by several, not necessarily contiguous assertions. For instance, this represents a rectangle:

...
 (:FACT4 :END (800 240))
 (:FACT4 :START (660 120))
...
 (:FACT4 :RECTANGLE NIL)
...

As an aside, the reason behind using this data representation approach is that it demands as little commitment from the programmer as possible. The three facts I just showed you can be interpreted as a rectangle that starts at 660x120 and ends at 800x240, but you can consider these facts individually, or together with individual facts from other elements as you need to. Pushing down to a list of k/v constructs would pre-maturely commit you to the idea that these are objects which you should be considering holistically.

Really, though, aside. The only reason I showed you that representation is so that the traversers and modifiers I'm about to show you can make some sense.

Bridging the Two

Before we get into the underlying mechanics of how it happens, here's what we want to happen:

CL-USER> (ql:quickload :sicp-constraints)
To load "sicp-constraints":
  Load 1 ASDF system:
    sicp-constraints
; Loading "sicp-constraints"
[package sicp-constraints]....
(:SICP-CONSTRAINTS)
CL-USER> (in-package :sicp-constraints)
#<PACKAGE "SICP-CONSTRAINTS">
SICP-CONSTRAINTS> (compile-diagram :repl #p"celsius-to-faranheit.base")
(PROGN
 (DEFVAR *FARANHEIT* (MAKE-CONNECTOR))
 (MAKE-PROBE "FARANHEIT" *FARANHEIT*)
 (DEFVAR *CELSIUS* (MAKE-CONNECTOR))
 (MAKE-PROBE "CELSIUS" *CELSIUS*)
 (DEFUN CELSIUS-TO-FARANHEIT (FARANHEIT CELSIUS)
   (LET ((G1475 (MAKE-CONNECTOR))
         (G1474 (MAKE-CONNECTOR))
         (G1473 (MAKE-CONNECTOR))
         (G1470 (MAKE-CONNECTOR))
         (G1469 (MAKE-CONNECTOR)))
     (MAKE-MULTIPLIER :M1 CELSIUS :M2 G1470 :PRODUCT G1475)
     (MAKE-MULTIPLIER :PRODUCT G1475 :M2 G1469 :M1 G1474)
     (MAKE-ADDER :SUM FARANHEIT :A1 G1474 :A2 G1473)
     (MAKE-CONSTANT 5 G1469)
     (MAKE-CONSTANT 32 G1473)
     (MAKE-CONSTANT 9 G1470)
     'OK))
 (CELSIUS-TO-FARANHEIT *FARANHEIT* *CELSIUS*))
SICP-CONSTRAINTS> (eval (compile-diagram :repl #p"celsius-to-faranheit.base"))
OK
SICP-CONSTRAINTS> (set! *celsius* 25 'user)
Probe: FARANHEIT = 77
Probe: CELSIUS = 25
NIL
SICP-CONSTRAINTS> (forget! *celsius* 'user)
Probe: FARANHEIT = ?
Probe: CELSIUS = ?
NIL
SICP-CONSTRAINTS> (set! *faranheit* 125 'user)
Probe: CELSIUS = 155/3
Probe: FARANHEIT = 125
NIL
SICP-CONSTRAINTS> (forget! *faranheit* 'user)
Probe: CELSIUS = ?
Probe: FARANHEIT = ?
NIL
SICP-CONSTRAINTS>

That is, there should be a function compile-diagram that takes a compilation target|4| and a pathname, and produces the expression that corresponds to the constraint system that the given diagram represents. If you eval the result, what you should get is a functioning system that lets you set! and forget! the appropriate variables to see constraints propagate.

With that in mind, here's the compiler:

(in-package :sicp-constraints)

(defmethod compile-diagram (target (file pathname))
  (with-open-file (s file)
    (compile-diagram target (read s))))

(defmethod compile-diagram (target (base list))
  (generate-code target (synthesize base)))

;;;;;;;;;; Synthesizing new facts
(defmethod synthesize ((base list))
  (label-line-cluster
   (label-line-connections
    (label-connection-endpoints
     (label-top-inputs
      (label-arguments-and-name
       (label-labels
        (label-constants
         (label-constraints base)))))))))

(defmethod label-constraints ((base list))
  "Any rectangle is a constraint."
  (for-all (?id :rectangle nil) :in base :do (push (list ?id :sicp-constraint nil) base))
  base)

(defmethod label-constants ((base list))
  "A rounded rectangle with a perfectly overlapping text box is a constant."
  (for-all (and (?id :rounded-rectangle nil)
                (?id :start ?start) (?id :end ?end)
                (?text :text nil)
                (?text :start ?start) (?text :end ?end)
                (?text :contents ?value))
           :in base :do (progn (push (list ?text :value (parse-integer ?value :junk-allowed t)) base)
                               (push (list ?text :sicp-constant nil) base)))
  base)

(defun between? (a n b)
  (>= (max a b) n (min a b)))

(defun point-inside? (x y ax ay bx by)
  (and (between? ax x bx)
       (between? ay y by)))

(defmethod label-labels ((base list))
  "Any text box inside a constraint is a label pertaining to it."
  (for-all (and (?id :sicp-constraint nil)
                (?id :start (?cx ?cy)) (?id :end (?cx2 ?cy2))
                (?text :text nil)
                (?text :start (?x ?y)) (?text :end (?x2 ?y2))
                (lisp (and (point-inside? ?x ?y ?cx ?cy ?cx2 ?cy2)
                           (point-inside? ?x2 ?y2 ?cx ?cy ?cx2 ?cy2))))
           :in base :do (push (list ?id :constraint-of ?text) base))
  base)

(defun on-edge? (x y ax ay bx by)
  (or (= x ax) (= x bx)
      (= y ay) (= y by)))

(defmethod label-arguments-and-name ((base list))
  "Text boxes contained by constraints, and on their edges are arguments.
Text boxes contained by constraints but not on their edges are constraint names."
  (for-all (and (?id :constraint-of ?text)
                (?id :start (?cx ?cy)) (?id :end (?cx2 ?cy2))
                (?text :start (?tx ?ty)) (?text :end (?tx2 ?ty2))
                (lisp (or (on-edge? ?tx ?ty ?cx ?cy ?cx2 ?cy2)
                          (on-edge? ?tx2 ?ty2 ?cx ?cy ?cx2 ?cy2))))
           :in base :do (push (list ?text :sicp-argument nil) base))
  (for-all (and (?id :constraint-of ?text)
                (not (?text :sicp-argument nil)))
           :in base :do (push (list ?text :sicp-constraint-name nil) base))
  base)

(defmethod label-top-inputs ((base list))
  "Any text boxes that haven't yet been annotated as constraint-names, arguments or constants are top level inputs for the system."
  (for-all (and (?id :text nil)
                (not (?id :sicp-constraint-name nil)
                     (?id :sicp-argument nil)
                     (?id :sicp-constant nil)))
           :in base :do (push (list ?id :sicp-top-connection nil) base))
  base)

(defmethod label-line-connections ((base list))
  "Some lines connect to other lines. Connecting lines will be a single connection rather than multiple connections."
  (for-all (and (?id :line-segment nil)
                (?id :start ?start) (?id :end ?end)
                (?id2 :line-segment nil)
                (lisp (not (equal ?id ?id2)))
                (or (?id2 :start ?end) (?id2 :end ?start)
                    (?id2 :start ?start) (?id2 :end ?end)))
           :in base :do (push (list ?id :line-connects-to-line ?id2) base))
  base)

(defmethod label-connection-endpoints ((base list))
  "Some line-segments connect to arguments, constants or top-connections, and this needs to be stated explicitly."
  (for-all (and (?id :line-segment nil)
                (?id :start (?x ?y)) (?id :end (?x2 ?y2))
                (or (?id2 :sicp-argument nil)
                    (?id2 :sicp-constant nil)
                    (?id2 :sicp-top-connection nil))
                (?id2 :start (?ax ?ay)) (?id2 :end (?ax2 ?ay2))
                (lisp (or (and (point-inside? ?x ?y ?ax ?ay ?ax2 ?ay2)
                               (on-edge? ?x ?y ?ax ?ay ?ax2 ?ay2))
                          (and (point-inside? ?x2 ?y2 ?ax ?ay ?ax2 ?ay2)
                               (on-edge? ?x2 ?y2 ?ax ?ay ?ax2 ?ay2)))))
           :in base :collect (push (list ?id :connects-to ?id2) base))
  base)

(defun walk-segment-graph (base src &key (explored (list src)))
  (for-all `(and (or (,src :line-connects-to-line ?id)
                     (?id :line-connects-to-line ,src))
                 (lisp (not (member ?id (list ,@explored)))))
           :in base
           :do (unless (member ?id explored)
                 (push ?id explored)
                 (setf explored (walk-segment-graph base ?id :explored explored))))
  explored)

(defmethod label-line-cluster ((base list))
  (let ((res (make-hash-table :test 'equal)))
    (for-all (and (?id :line-segment nil)
                  (not (?cluster :contains ?id)))
             :in base
             :collect (let ((cluster (sort (walk-segment-graph base ?id) #'string< :key #'symbol-name)))
                        (setf (gethash cluster res) t)))
    (loop for clst being the hash-keys of res
       do (let ((id (intern (symbol-name (gensym)))))
            (push (list id :cluster nil) base)
            (loop for elem in clst
               do (push (list id :contains elem) base))))
    base))

;;;;;;;;;; Generating code on that basis
(defun sanitize (str)
  (string-upcase
   (string-right-trim
    (list #\newline #\return #\space)
    str)))

(defmethod generate-constants ((base list))
  (for-all (and (?id :sicp-constant nil)
                (?id :value ?const)
                (?line :connects-to ?id)
                (?cluster :contains ?line))
           :in base :collect `(make-constant ,?const ,?cluster)))

(defmethod generate-internal-arguments ((base list) constraint)
  (let ((res))
    (for-all `(and (,constraint :constraint-of ?txt)
                   (?txt :sicp-argument nil)
                   (?txt :contents ?arg-name)
                   (?line :connects-to ?txt)
                   (?cluster :contains ?line)
                   (not (and (?cluster :contains ?line2)
                             (?line2 :connects-to ?top)
                             (?top :sicp-top-connection nil))))
             :in base
             :do (progn (push ?cluster res)
                        (push (intern (sanitize ?arg-name) :keyword) res)))
    res))

(defmethod generate-top-arguments ((base list) constraint)
  (let ((res))
    (for-all `(and (,constraint :constraint-of ?txt)
                   (?txt :sicp-argument nil)
                   (?txt :contents ?arg-name)
                   (?line :connects-to ?txt)
                   (?line :connects-to ?top)
                   (?top :sicp-top-connection nil)
                   (?top :contents ?top-name))
             :in base :do (progn (push (intern (sanitize ?top-name)) res)
                                 (push (intern (sanitize ?arg-name) :keyword) res)))
    res))

(defmethod generate-arguments ((base list) constraint)
  (append (generate-top-arguments base constraint)
          (generate-internal-arguments base constraint)))

(defmethod generate-constraints ((base list))
  (for-all (and (?id :sicp-constraint nil)
                (?id :constraint-of ?txt)
                (?txt :sicp-constraint-name nil)
                (?txt :contents ?name))
           :in base
           :collect (case (intern (sanitize ?name) :keyword)
                      (:* `(make-multiplier ,@(generate-arguments base ?id)))
                      (:+ `(make-adder ,@(generate-arguments base ?id))))))

(defmethod generate-internal-connections ((base list))
  (for-all (and (?id :cluster nil)
                (not (and (?id :contains ?line)
                          (?line :connects-to ?elem)
                          (?elem :sicp-top-connection nil))))
           :in base :collect `(,?id (make-connector))))

(defmethod generate-component-factory ((component-name symbol) (args list) (base list))
  `(defun ,component-name ,args
     (let ,(generate-internal-connections base)
       ,@(generate-constraints base)
       ,@(generate-constants base)
       'ok)))

(defmethod get-component-name ((base list))
  (intern (first (for-all (and (?id :diagram-name nil)
                               (?id :value ?name))
                          :in base :collect (sanitize ?name)))))

(defmethod get-top-level-names ((base list))
  (for-all (and (?id :sicp-top-connection nil)
                (?id :contents ?name))
           :in base :collect (sanitize ?name)))

(defmethod generate-repl-app ((base list))
  (let* ((component-name (get-component-name base))
         (top-level-names (get-top-level-names base))
         (top-level-global-vars
          (mapcar (lambda (v) (intern (format nil "*~a*" v)))
                  top-level-names)))
    `(progn ,@(loop for v in top-level-global-vars
                 for n in top-level-names
                 collect `(defvar ,v (make-connector))
                 collect `(make-probe ,n ,v))
            ,(generate-component-factory
              component-name (mapcar #'intern top-level-names) base)
            (,component-name ,@top-level-global-vars))))

(defmethod generate-code (target (base list))
  (error "Unsupported target: ~s" target))

(defmethod generate-code ((target (eql :repl)) (base list))
  (generate-repl-app base))

Don't worry, I'll go through all that in reasonable detail. But the point you should be getting from the above is that visual compilation is possible. It's not a piece of arcane magic that no mortal can tame. In fact, it isn't even particularly complicated as compilation goes. Which you'll see when we start getting into it. I mention this specifically because many seem to think this is magic. The reactions I get when I try to talk about visual compilation range from "There's no way this saves you time" to "That sounds ... hard" to looks of blank incomprehension. Every so often someone gets it and immediately has interest sparked.

So my aim today is to dispel the myth, and shine some light on an apparently rare, but promising-looking style of development.

As usual, the in-package form is a namespace term. It means we're acting in the namespace :sicp-constraints. The entry point here is compile-diagram

(defmethod compile-diagram (target (file pathname))
  (with-open-file (s file)
    (compile-diagram target (read s))))

(defmethod compile-diagram (target (base list))
  (generate-code target (synthesize base)))

Which is a method with two specializers. It takes a target, and either a pathname or a list (which it assumes to be a fact-base). If it gets a pathname, it reads the contents of the specified file and recursively calls itself, passing along the target and file contents. If it gets a list, it runs synthesize on it, and then calls generate-code on target and the result of that synthesizecall. It's hopefully obvious from the method names, but synthesize will be making some new annotations in the given fact base to help us along, while generate-code will be generating the code for the appropriate compilation target|5|. Lets take a look at the synthesize tree first.

(defmethod synthesize ((base list))
  (label-line-cluster
   (label-line-connections
    (label-connection-endpoints
     (label-top-inputs
      (label-arguments-and-name
       (label-labels
        (label-constants
         (label-constraints base)))))))))

It takes a base and runs a sequence of functions on it, returning the result of the last one. I could have defined a piece of syntactic sugar to act like Clojures' thread (->) macro so that I could write these out in their application order rather than in reverse, but I didn't. So we're going backwards through the pattern.

(defmethod label-constraints ((base list))
  "Any rectangle is a constraint."
  (for-all (?id :rectangle nil) :in base :do (push (list ?id :sicp-constraint nil) base))
  base)

If you haven't seen a for-all call before, take a quick look at this before we move on. The section near the bottom specifically pertains, but you should probably give the whole thing a skim. label-constraints annotates every :rectangle fact with an additional :sicp-constraint fact. It might look pointless at the moment, but I still want to separate the representation of constraints from the underlying rectangle primitive, just in case I run into a situation that demands they be separated somehow.

(defmethod label-constants ((base list))
  "A rounded rectangle with a perfectly overlapping text box is a constant."
  (for-all (and (?id :rounded-rectangle nil)
                (?id :start ?start) (?id :end ?end)
                (?text :text nil)
                (?text :start ?start) (?text :end ?end)
                (?text :contents ?value))
           :in base :do (progn (push (list ?text :value (parse-integer ?value :junk-allowed t)) base)
                               (push (list ?text :sicp-constant nil) base)))
  base)

label-constants specifically labels the constant constraints. In addition to noting their presence, it also parses out their numeric value and annotates that as well. Next up, the oddly named label-labels

(defmethod label-labels ((base list))
  "Any text box inside a constraint is a label pertaining to it."
  (for-all (and (?id :sicp-constraint nil)
                (?id :start (?cx ?cy)) (?id :end (?cx2 ?cy2))
                (?text :text nil)
                (?text :start (?x ?y)) (?text :end (?x2 ?y2))
                (lisp (and (point-inside? ?x ?y ?cx ?cy ?cx2 ?cy2)
                           (point-inside? ?x2 ?y2 ?cx ?cy ?cx2 ?cy2))))
           :in base :do (push (list ?id :constraint-of ?text) base))
  base)

There's a bunch of labels inside of a constraints' rectangle that pertain to it. Those labels might be arguments, or they might be the constraints' name. At this point, we're only annotating that relationship rather than deciding which type of label we're looking at. That happens in

(defmethod label-arguments-and-name ((base list))
  "Text boxes contained by constraints, and on their edges are arguments.
Text boxes contained by constraints but not on their edges are constraint names."
  (for-all (and (?id :constraint-of ?text)
                (?id :start (?cx ?cy)) (?id :end (?cx2 ?cy2))
                (?text :start (?tx ?ty)) (?text :end (?tx2 ?ty2))
                (lisp (or (on-edge? ?tx ?ty ?cx ?cy ?cx2 ?cy2)
                          (on-edge? ?tx2 ?ty2 ?cx ?cy ?cx2 ?cy2))))
           :in base :do (push (list ?text :sicp-argument nil) base))
  (for-all (and (?id :constraint-of ?text)
                (not (?text :sicp-argument nil)))
           :in base :do (push (list ?text :sicp-constraint-name nil) base))
  base)

label-arguments-and-name annotates all text blocks on the edges of a constraint as arguments, then goes back through and labels any remaining pertinent text blocks as :sicp-constraint-names. Incidentally, I'm using some minor utility functions here; point-inside? from label-labels and on-edge? in label-arguments-and-name. Their implementations are simple enough that I'll just refer you to the code, and their function should be obvious from their names. point-inside? takes three points, in raw coordinate format, and tells you whether the first one is between the next two. on-edge? takes the same inputs, and makes sure that the first point is on the line described by the second two|6|.

Moving on.

(defmethod label-top-inputs ((base list))
  "Any text boxes that haven't yet been annotated as constraint-names, arguments or constants are top level inputs for the system."
  (for-all (and (?id :text nil)
                (not (?id :sicp-constraint-name nil)
                     (?id :sicp-argument nil)
                     (?id :sicp-constant nil)))
           :in base :do (push (list ?id :sicp-top-connection nil) base))
  base)

label-top-inputs is well explained by its docstring. Since we've already annotated all text blocks that pertain to constraints and constants, we take anything that's left to be top-level inputs for this component. In our example diagram, that would be the celsius and faranheit. At this point, we've got everything set up that'll let us extract appropriate names for constraints and their arguments. The next thing we need to do is figure out what are connections look like, which means finally taking a look at the lines in that image.

(defmethod label-connection-endpoints ((base list))
  "Some line-segments connect to arguments, constants or top-connections, and this needs to be stated explicitly."
  (for-all (and (?id :line-segment nil)
                (?id :start (?x ?y)) (?id :end (?x2 ?y2))
                (or (?id2 :sicp-argument nil)
                    (?id2 :sicp-constant nil)
                    (?id2 :sicp-top-connection nil))
                (?id2 :start (?ax ?ay)) (?id2 :end (?ax2 ?ay2))
                (lisp (or (and (point-inside? ?x ?y ?ax ?ay ?ax2 ?ay2)
                               (on-edge? ?x ?y ?ax ?ay ?ax2 ?ay2))
                          (and (point-inside? ?x2 ?y2 ?ax ?ay ?ax2 ?ay2)
                               (on-edge? ?x2 ?y2 ?ax ?ay ?ax2 ?ay2)))))
           :in base :collect (push (list ?id :connects-to ?id2) base))
  base)

That's step one. We need to call out the lines that connect to particular constraint arguments, top-level connections and constants because this is going to affect what constraints will be informing which connections. A simple :connects-to fact is sufficient for our purposes.

(defmethod label-line-connections ((base list))
  "Some lines connect to other lines. Connecting lines will be a single connection rather than multiple connections."
  (for-all (and (?id :line-segment nil)
                (?id :start ?start) (?id :end ?end)
                (?id2 :line-segment nil)
                (lisp (not (equal ?id ?id2)))
                (or (?id2 :start ?end) (?id2 :end ?start)
                    (?id2 :start ?start) (?id2 :end ?end)))
           :in base :do (push (list ?id :line-connects-to-line ?id2) base))
  base)

Next up, label-line-connections is going to make the relationships between line clusters explicit. Taking a look at our example diagram, most connections are composed of a single line-segment, but some are clusters of multiple segments. In particular, the constant 9 and the constant 5 are connected to other arguments by three-segment clusters. Finally, the last piece we synthesize, and also the most complex is

(defmethod label-line-cluster ((base list))
  (let ((res (make-hash-table :test 'equal)))
    (for-all (and (?id :line-segment nil)
                  (not (?cluster :contains ?id)))
             :in base
             :do (let ((cluster (sort (walk-segment-graph base ?id) #'string< :key #'symbol-name)))
                   (setf (gethash cluster res) t)))
    (loop for clst being the hash-keys of res
       do (let ((id (intern (symbol-name (gensym)))))
            (push (list id :cluster nil) base)
            (loop for elem in clst
               do (push (list id :contains elem) base))))
    base))

In this phase, we annotate the clusters. Which means we need to go through the list of all line-segments, figure out which cluster they belong to and add facts regarding this information to our base. We can't just create a new cluster per origin point, because some lines might belong to the same cluser, so we use walk-segment-graph to figure out the list of all line-segments reachable by walking from a particular one. Then we essentially use a hash-table as a set to make sure we've only got unique clusters, and finally we insert relevant facts into the base. Because it's a crucial step, lets also go through walk-segment-graph

(defun walk-segment-graph (base src &key (explored (list src)))
  (for-all `(and (or (,src :line-connects-to-line ?id)
                     (?id :line-connects-to-line ,src))
                 (lisp (not (member ?id (list ,@explored)))))
           :in base
           :do (unless (member ?id explored)
                 (push ?id explored)
                 (setf explored (walk-segment-graph base ?id :explored explored))))
  explored)

Basically, we find immediately connecting lines to the origin, then recursively walk each of them, adding intermediate results to explored so we don't re-traverse large parts of the graph. Eventually, we return the list of explored elements.

That does it for synthesize. Next up, we go through a generation step.

(defmethod generate-code (target (base list))
  (error "Unsupported target: ~s" target))

(defmethod generate-code ((target (eql :repl)) (base list))
  (generate-repl-app base))

Again, there's only one method here. I'm leaving in room for expansion to other compilation targets, but we're currently only generating :repl apps. And we're doing it by directly calling generate-repl-app.

(defmethod generate-repl-app ((base list))
  (let* ((component-name (get-component-name base))
         (top-level-names (get-top-level-names base))
         (top-level-global-vars
          (mapcar (lambda (v) (intern (format nil "*~a*" v)))
                  top-level-names)))
    `(progn ,@(loop for v in top-level-global-vars
                 for n in top-level-names
                 collect `(defvar ,v (make-connector))
                 collect `(make-probe ,n ,v))
            ,(generate-component-factory
              component-name (mapcar #'intern top-level-names) base)
            (,component-name ,@top-level-global-vars))))

Which uses component-name, and a couple transformations of top-level-names to generate that top-level form we saw in the demo earlier. In fact, you should be able to clearly see the correspondence between the backquoted form in generate-repl-app and the final output. Just to refresh your memory, that was:

SICP-CONSTRAINTS> (compile-diagram :repl #p"celsius-to-faranheit.base")
(PROGN
 (DEFVAR *FARANHEIT* (MAKE-CONNECTOR))
 (MAKE-PROBE "FARANHEIT" *FARANHEIT*)
 (DEFVAR *CELSIUS* (MAKE-CONNECTOR))
 (MAKE-PROBE "CELSIUS" *CELSIUS*)
 (DEFUN CELSIUS-TO-FARANHEIT (FARANHEIT CELSIUS)
   (LET ((G1475 (MAKE-CONNECTOR))
         (G1474 (MAKE-CONNECTOR))
         (G1473 (MAKE-CONNECTOR))
         (G1470 (MAKE-CONNECTOR))
         (G1469 (MAKE-CONNECTOR)))
     (MAKE-MULTIPLIER :M1 CELSIUS :M2 G1470 :PRODUCT G1475)
     (MAKE-MULTIPLIER :PRODUCT G1475 :M2 G1469 :M1 G1474)
     (MAKE-ADDER :SUM FARANHEIT :A1 G1474 :A2 G1473)
     (MAKE-CONSTANT 5 G1469)
     (MAKE-CONSTANT 32 G1473)
     (MAKE-CONSTANT 9 G1470)
     'OK))
 (CELSIUS-TO-FARANHEIT *FARANHEIT* *CELSIUS*))
SICP-CONSTRAINTS>

You can trivially see the loop that generates the

...
 (DEFVAR *FARANHEIT* (MAKE-CONNECTOR))
 (MAKE-PROBE "FARANHEIT" *FARANHEIT*)
 (DEFVAR *CELSIUS* (MAKE-CONNECTOR))
 (MAKE-PROBE "CELSIUS" *CELSIUS*)
...

It traverses the top-level-global-vars (which is just the upcased, earmuffed version of the top-level-names list) and collects the defvar/make-probe lines for each of them. The next part is a bit impenetrably named if you're not familiar with the terminology. A component is a specific instance of a constraint between some number of connectors. A factory of such components is a procedure that takes the appropriate number of connectors, and instantiates the necessary constraints between them, so creating that instance we just mentioned. The specific factory we're going to be generating code for is going to need to know the component-name, and have a list of top-level-names, and it'll need to tear a few more things out of base to really do its job. Lets take a look

(defmethod generate-component-factory ((component-name symbol) (args list) (base list))
  `(defun ,component-name ,args
     (let ,(generate-internal-connections base)
       ,@(generate-constraints base)
       ,@(generate-constants base)
       'ok)))

It generates a defun, with the component-name in the function name position and the list of top-level-names as arguments. Which in our case translates to

 (DEFUN CELSIUS-TO-FARANHEIT (FARANHEIT CELSIUS)
   ...)

Inside of that defun, it sets up a let with the internal connector definitions set up. generate-internal-constraints does the heavy lifting here...

(defmethod generate-internal-connections ((base list))
  (for-all (and (?id :cluster nil)
                (not (and (?id :contains ?line)
                          (?line :connects-to ?elem)
                          (?elem :sicp-top-connection nil))))
           :in base :collect `(,?id (make-connector))))

...by finding the list of clusters that :contains no lines which connect to :sicp-top-connection elements. Those are going to be dealt with externally, and we're only interested in internal connections here. For the diagram we're currently compiling, generate-internal-connections will return something like

((G1475 (MAKE-CONNECTOR))
 (G1474 (MAKE-CONNECTOR))
 (G1473 (MAKE-CONNECTOR))
 (G1470 (MAKE-CONNECTOR))
 (G1469 (MAKE-CONNECTOR)))

"something like" because the actual symbol names on the left there will be different each time. We don't care what they're called though; we only care that they're consistent, and they will be because of how we're dealing with them. Our top-level return value of generate-component-factory is now up to

 (DEFUN CELSIUS-TO-FARANHEIT (FARANHEIT CELSIUS)
   (LET ((G1475 (MAKE-CONNECTOR))
         (G1474 (MAKE-CONNECTOR))
         (G1473 (MAKE-CONNECTOR))
         (G1470 (MAKE-CONNECTOR))
         (G1469 (MAKE-CONNECTOR)))
     ...
     'ok))

The generate-constraints call is the thing that generates terms to instantiate primitive connectors.

(defmethod generate-constraints ((base list))
  (for-all (and (?id :sicp-constraint nil)
                (?id :constraint-of ?txt)
                (?txt :sicp-constraint-name nil)
                (?txt :contents ?name))
           :in base
           :collect (case (intern (sanitize ?name) :keyword)
                      (:* `(make-multiplier ,@(generate-arguments base ?id)))
                      (:+ `(make-adder ,@(generate-arguments base ?id))))))

For the moment, it only deals with * and + constraints, but this is the method that would take care of instantiating other diagrams if we were going the hierarchical route. Specifically, there'd be an else clause on that case statement that would figure things out|7|. Sorry, got off topic for a moment there; generate-constraints takes a base, gets its name element and uses the contents do decide what specific factory form to generate. Either way, we call generate-arguments to get the argument terms out. In fact, now that I think about it, it would have been easy to write that :collect clause as

...
:collect `(,(case (intern (sanitize ?name) :keyword)
                     (:* make-multiplier)
                     (:+ make-adder))
               ,@(generate-arguments base ?id))
...

In fact, note to self. generate-arguments itself does the obvious thing.

(defmethod generate-arguments ((base list) constraint)
  (append (generate-top-arguments base constraint)
          (generate-internal-arguments base constraint)))

Or rather, it combines the results of two methods that do the obvious things.

(defmethod generate-internal-arguments ((base list) constraint)
  (let ((res))
    (for-all `(and (,constraint :constraint-of ?txt)
                   (?txt :sicp-argument nil)
                   (?txt :contents ?arg-name)
                   (?line :connects-to ?txt)
                   (?cluster :contains ?line)
                   (not (and (?cluster :contains ?line2)
                             (?line2 :connects-to ?top)
                             (?top :sicp-top-connection nil))))
             :in base
             :do (progn (push ?cluster res)
                        (push (intern (sanitize ?arg-name) :keyword) res)))
    res))

(defmethod generate-top-arguments ((base list) constraint)
  (let ((res))
    (for-all `(and (,constraint :constraint-of ?txt)
                   (?txt :sicp-argument nil)
                   (?txt :contents ?arg-name)
                   (?line :connects-to ?txt)
                   (?line :connects-to ?top)
                   (?top :sicp-top-connection nil)
                   (?top :contents ?top-name))
             :in base :do (progn (push (intern (sanitize ?top-name)) res)
                                 (push (intern (sanitize ?arg-name) :keyword) res)))
    res))

generate-internal-arguments is collecting all the arguments that will be bound to local connections. generate-top-arguments is collecting all the ones that will be bound to top connections. As an example, for the first multiplier constraint, generate-arguments will return '(:M1 CELSIUS :M2 G1470 :PRODUCT G1475), because its m1 argument is fed by the top-level celsius connector, whereas its m2 and product arguments are fed by internal connections.

Popping up one additional level, in our particular case, generate-constraints will return three forms; instantiation forms for two multipliers and one adder. At this point, our top level return value is up to

 (DEFUN CELSIUS-TO-FARANHEIT (FARANHEIT CELSIUS)
   (LET ((G1475 (MAKE-CONNECTOR))
         (G1474 (MAKE-CONNECTOR))
         (G1473 (MAKE-CONNECTOR))
         (G1470 (MAKE-CONNECTOR))
         (G1469 (MAKE-CONNECTOR)))
     (MAKE-MULTIPLIER :M1 CELSIUS :M2 G1470 :PRODUCT G1475)
     (MAKE-MULTIPLIER :PRODUCT G1475 :M2 G1469 :M1 G1474)
     (MAKE-ADDER :SUM FARANHEIT :A1 G1474 :A2 G1473)
     ...
     'ok))

The last piece of the factory will set up any constant constraints it needs.

(defmethod generate-constants ((base list))
  (for-all (and (?id :sicp-constant nil)
                (?id :value ?const)
                (?line :connects-to ?id)
                (?cluster :contains ?line))
           :in base :collect `(make-constant ,?const ,?cluster)))

This one's pretty simple because we already generated facts that specify the parsed form of a constants' input back in the synthesize step. All we need to do is collect make-constant forms that take that parsed value and the appropriate connector as arguments. That completes factory term.

 (DEFUN CELSIUS-TO-FARANHEIT (FARANHEIT CELSIUS)
   (LET ((G1475 (MAKE-CONNECTOR))
         (G1474 (MAKE-CONNECTOR))
         (G1473 (MAKE-CONNECTOR))
         (G1470 (MAKE-CONNECTOR))
         (G1469 (MAKE-CONNECTOR)))
     (MAKE-MULTIPLIER :M1 CELSIUS :M2 G1470 :PRODUCT G1475)
     (MAKE-MULTIPLIER :PRODUCT G1475 :M2 G1469 :M1 G1474)
     (MAKE-ADDER :SUM FARANHEIT :A1 G1474 :A2 G1473)
     (MAKE-CONSTANT 5 G1469)
     (MAKE-CONSTANT 32 G1473)
     (MAKE-CONSTANT 9 G1470)
     'OK))

The very last thing our compiler needs to do is generate the term that will make call this factory to instantiate our system, feeding it its top-level connectors. And that happens in the last line of generate-repl-app

...
 (,component-name ,@top-level-global-vars))))

That takes the name of our component (which we also used as the name for our factory) and puts it at the beginning of a list form into which it splices top-level-global-vars (which we used as the names for our top-level connectors).

That's that.

You now fully understand how this happens:

SICP-CONSTRAINTS> (compile-diagram :repl #p"celsius-to-faranheit.base")
(PROGN
 (DEFVAR *FARANHEIT* (MAKE-CONNECTOR))
 (MAKE-PROBE "FARANHEIT" *FARANHEIT*)
 (DEFVAR *CELSIUS* (MAKE-CONNECTOR))
 (MAKE-PROBE "CELSIUS" *CELSIUS*)
 (DEFUN CELSIUS-TO-FARANHEIT (FARANHEIT CELSIUS)
   (LET ((G1475 (MAKE-CONNECTOR))
         (G1474 (MAKE-CONNECTOR))
         (G1473 (MAKE-CONNECTOR))
         (G1470 (MAKE-CONNECTOR))
         (G1469 (MAKE-CONNECTOR)))
     (MAKE-MULTIPLIER :M1 CELSIUS :M2 G1470 :PRODUCT G1475)
     (MAKE-MULTIPLIER :PRODUCT G1475 :M2 G1469 :M1 G1474)
     (MAKE-ADDER :SUM FARANHEIT :A1 G1474 :A2 G1473)
     (MAKE-CONSTANT 5 G1469)
     (MAKE-CONSTANT 32 G1473)
     (MAKE-CONSTANT 9 G1470)
     'OK))
 (CELSIUS-TO-FARANHEIT *FARANHEIT* *CELSIUS*))
SICP-CONSTRAINTS>

Hopefully, you can imagine some places where compiling your "documentation" images like this might be a worth-while approach. And now have the cognitive tools to go do something about it.


Footnotes

1 - |back| - Because the code we run is generated from the documentation, so it by definition reflects the running system.

2 - |back| - Bar one or two I'm thinking about introducing while I play with the concept.

3 - |back| - In the sense that we don't have to properly order keyword args, whereas regular arguments have to be in a particular order that might not reflect our visual representation.

4 - |back| - I'm thinking ahead here. Eventually, we'll want compilation targets other than REPL apps, so I'm just building room for expansion into the initial design. One option I've already thought about is a compilation target called :web that'll generate a house handler along with that constraint system to let you play around in-browser rather than just in-repl.

5 - |back| - As it happens, there's only one right now; :repl, which will create the in-repl application that I demoed earlier.

6 - |back| - It's simpler than you might think, since I'm only concerning myself with horizontal and vertical lines.

7 - |back| - Note that we'd need to make a change or two to our defun emitter too, since at that point we'd need to emit keyword arguments there too.


Creative Commons License

all articles at langnostic are licensed under a Creative Commons Attribution-ShareAlike 3.0 Unported License

Reprint, rehost and distribute freely (even for profit), but attribute the work and allow your readers the same freedoms. Here's a license widget you can use.

The menu background image is Jewel Wash, taken from Dan Zen's flickr stream and released under a CC-BY license
